تفاصيل المنتج:
شروط الدفع والشحن:
|
| اسم المنتجات: | رافعة حبل الأسلاك الكهربائية CD1/MD1 | يكتب: | عارضة واحدة / مزدوجة |
|---|---|---|---|
| لون: | أحمر / أصفر / حسب الطلب | سرعة: | سرعة واحدة/سرعة مزدوجة |
| موك: | 1 مجموعة |

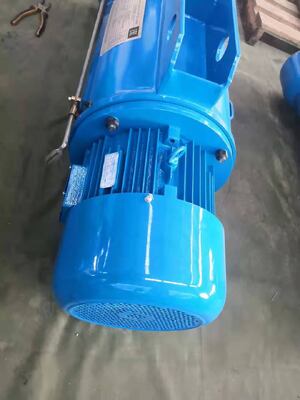

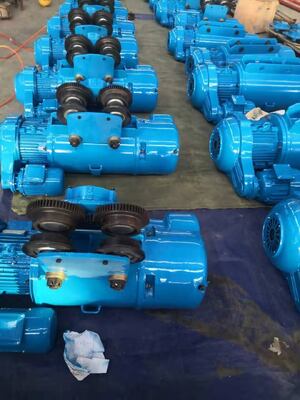

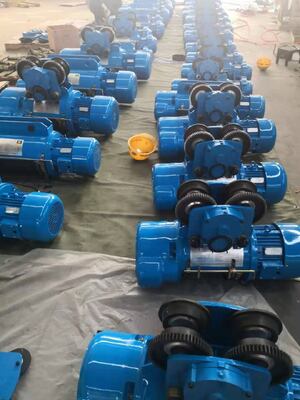

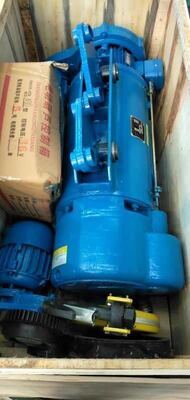

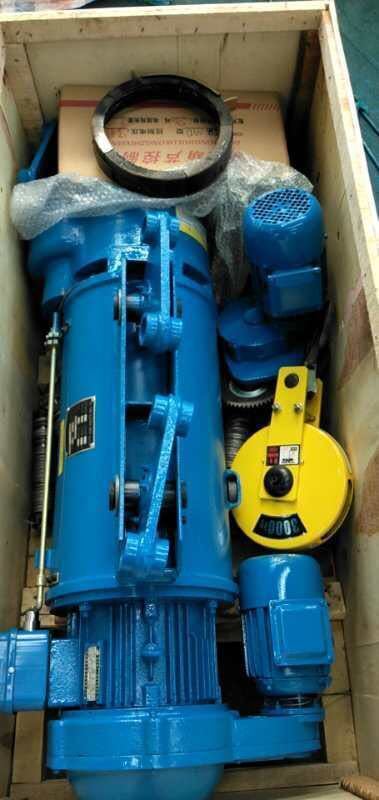

The wire rope electric hoist is a compact, lightweight, small-sized lifting equipment with versatile components and convenient operation. It primarily consists of components such as a motor, transmission mechanism, drum, and wire rope. The motor drives the transmission mechanism, causing the drum to rotate and wind up or release the wire rope, thereby achieving the lifting and moving of heavy objects. It can be used independently or in combination with bridge cranes, gantry cranes, jib cranes, and other lifting devices.
|
Model
|
CD1-0.5
|
CD1-1
|
CD1-2
|
CD1-5
|
CD1-10
|
|
Capacity(t)
|
0.5
|
1
|
2
|
5
|
10
|
|
Standard lift(m)
|
6-12
|
45473
|
6-30
|
45473
|
45565
|
|
Lifting speed(m/min)
|
8
|
8
|
8
|
8
|
7
|
|
Running speed(m/min)
|
20(30)
|
20(30)
|
20(30)
|
20(30)
|
20(30)
|
|
Wire rope type
|
6*37-4.8-180
|
6*37-7.4-180
|
6*37-11-155
|
6*37-15-200
|
6*37-17.5-20
|
|
I Beam track type
|
16-28b
|
16-28b
|
20a-32c
|
25a-63c
|
28a-63c
|
|
Motor power/kw
|
0.8
|
1.5
|
3
|
7.5
|
13
|
|
Motor R.P.M(r/min)
|
1380
|
1380
|
1380
|
1380
|
1380
|
|
Voltage(V)
|
380 or customized
|
||||
|
Frequency(Hz)
|
50(60)
|
50(60)
|
50(60)
|
50(60)
|
50(60)
|
|
Phase
|
3
|
3
|
3
|
3
|
3
|
